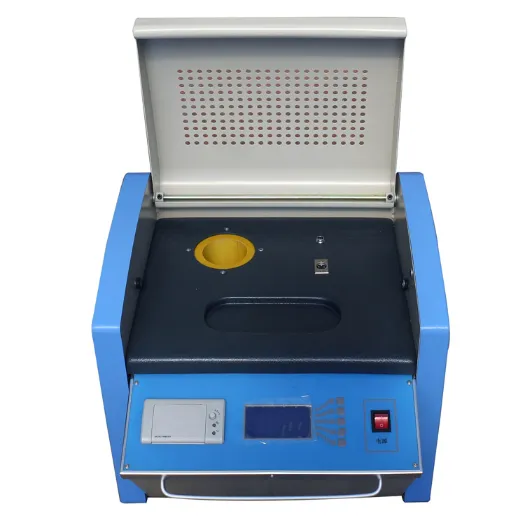

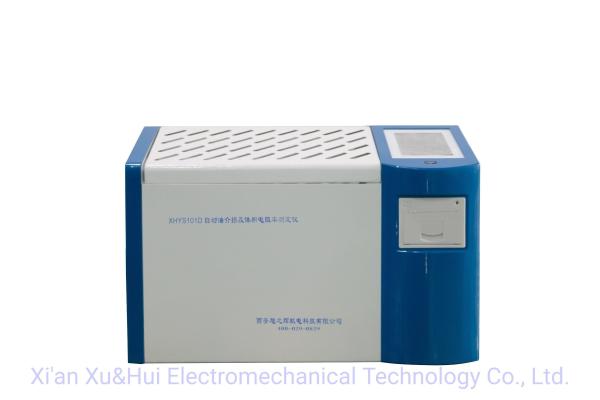

XHYS101 insulating oil dielectric loss tester is mainly used for power equipment insulation in the liquid, dielectric constant and dielectric loss value of volume resistivity measurement. This instrument adopts single-chip computer technology, automatic complete heating, temperature control, data sampling, calculation, display, printing and storage process. Advanced measuring principle and digital technology make your job easy and convenient.
Main feature:
1. Highly automated, heating, dielectric loss measurement, measuring resistivity can be a complete;
2. The Swiss TETTEX advanced technology, ensure the data accurate and reliable.
3. Have open power, high and low voltage circuit, air heater burning etc
4. Temperature control, integration of test structure, rational layout, easy to operate.
5. PID temperature control, intermediate frequency induction heating, each sample temperature should be about 15 minutes.
6. Automatic storage 128 groups of data, bring their own calendar, automatic print measurement results.
| Product Name | dielectric dissipation tester |
Range | electric capacity: 1pF~200pF
Dielectric Loss: 0~100%
Resistivity: 10M~10T |
Precision: | electric capacity: 0.5% + 1pF
Dielectric Loss: 1% + 0.0002
Resistivity: 10%
Temperature: ± 1 ºC |
Resolution ratio: | electric capacity: 0.01pF
Dielectric Loss: 10-5
Resistivity: 0.1M |
Output voltage: | dielectric loss: AC 2000V
Resistivity: DC 500V |
| Power: | 1000W |
| Working power supply: | AC220V ± 10% (50±1) Hz |
| Temperature: | 0~40ºC |
| Humidity: | <80RH |
